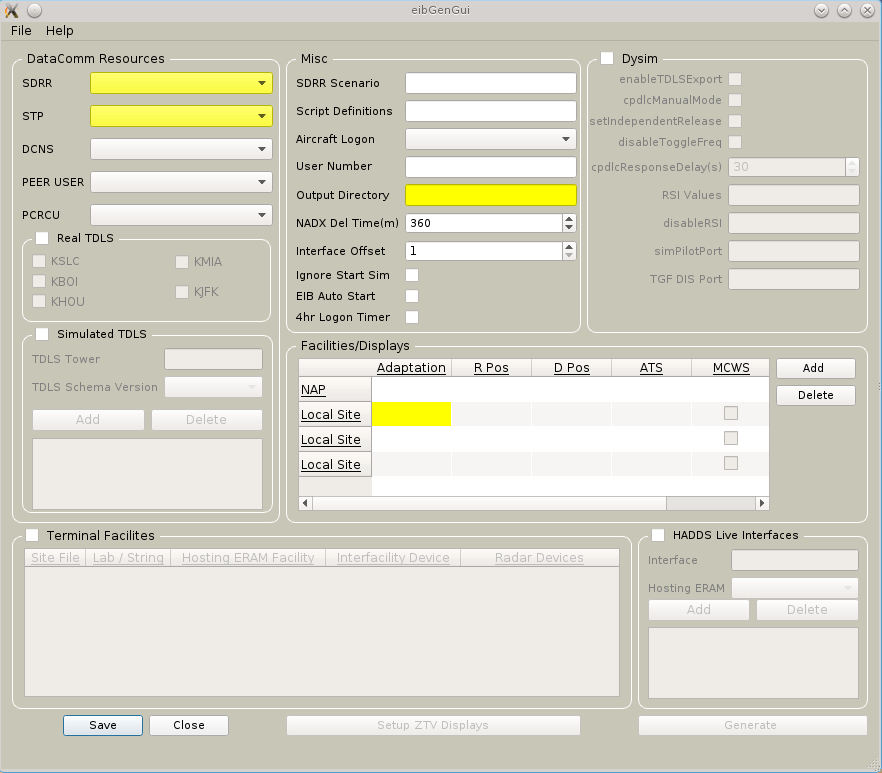

eibGenGui


• Create eib/sdrr run configurations using a GUI

• Required fields are indicated by yellow backgrounds and must be completed to generate your configuration.

DataComm Resources


SDRR: Select the SDRR according to your scenario configuration.

STP: Select the STP on which you will run.

DCNS: Select the DCNS according to your scenario configuration --Live or Simulated.

PEER: Select a PEER only if your scenario requires ALTYS.

PCRCU: Select which interface to connect to the FDIO.

Real TDLS: Check this box if you're configured for live TDLS and select the appropriate site.

Simulated TDLS: Check this box if you're going to simulate TDLS.

TDLS Tower: Enter a TDLS tower. (e.g. kslc or KSLC)

TDLS Schema Version: Enter the TDLS schema version for the chosen TDLS tower.

Add: Click to add the selected TDLS tower and Schema version.

Delete: Click to remove the selected TDLS tower and Schema version.

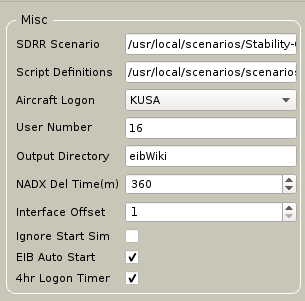

MISC


SDRR Scenario: Define the location for SDRR scenario. (e.g. /usr/local/scenarios/Stability-CPDLC/sdrr.xml)

Script Definitions: Define the location for script definitions. (e.g. /usr/local/scenarios/scenarios/scriptDefinitions.xml)

Aircraft Logon: Select the appropriate logon type for your scenario.

User Number: Input your user number. Hover the mouse over this field to display a list of user numbers and their associated user names.

Output Directory: Define the name of the generated directory.

NADX Del Time(m): Define how long a flight will stay in logon storage before it is deleted.

4hr Logon Timer: Select if running with 4hr Logon Timer.

EIB Auto Start: Select if auto PSIM/SSIM is desired.

Ignore Start Sim: Select if you want SDRR to ignore the SSIM.

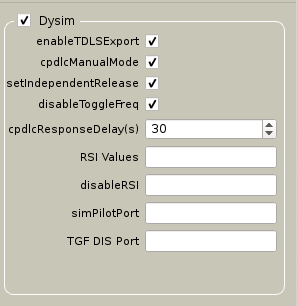

Dysim


• Check this box if you're running with Dysim.

enableTDLSExport: Select to enable TDLS export.

cpdlcManualMode: Select to enable CPDLC Manual Mode.

setIndependentRelease: Select to set Independent Release for all targets in the scenario.

disableToggleFreq: Select to disable Toggle Frequency.

cpdlcResponseDelay(s): Select default CPDLC repsonse delay (value in seconds).

RSI Values: Define which RSI values you wish to enable in a comma separated list.

DisableRSI: Define which RSI values you wish to disable in a comma separated list.

simPilotPort: Select 4 digit number for the Sim Pilot Port for Eram Driver.

TGF DIS Port: Select 4 digit port number for the DIS TGF Target Position Reports.

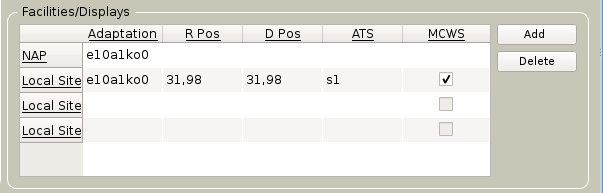

Facilities/Displays


NAP: Double click the cell under NAP/Adaptation to select a NAP.

Local Site: Double click the cell under Local Site/Adaptation to choose a local site. You must select a Local Site in order to fill in the cells for R Pos, D Pos, and ATS.

R Pos: Double click to specify live R Pos sectors as a comma separated list.

D Pos: Double click to specify live D Pos sectors as a comma separated list.

ATS: Double click to specify live ATS positions as a comma separated list.

MCWS: Check this box if you want to run with a graphical MnC.

Add: Click the ADD button if you wish to include more Local Sites.

Delete: Select a Local Site and click the Delete button if you wish to remove it.

Terminal Facilities


• Check this box if you wish to use Live Terminal Facilities.
• Right click in the blank area and select 'Add' to open a pop-up window.

Site File: In this field, Right Click > Open and select the desired adaptation site file.

Lab/String: Select the Lab/String you're configured for.

Hosting ERAM Facility: This field will be populated based on your NAP and/or Local Site adaptations in the Facilities/Displays area.

Interfacility Device: Specify one interfacility device. (e.g. if0, if1, etc.)

Radar Devices: Specify lrr, arr, or asr11 devices in a comma separated list. Expected format is lrrXX, arrXX, and asr11-XX, where X = any number.

HADDS Live Interfaces


Interface: Specify the IP address for HADDS interface.

Hosting ERAM: Select an ERAM adaptation.

Add: Click to add the specified Interface and Hosting ERAM.

Delete: Click to remove the selected HAADS interface.

Generate

• Click this button to generate the current configuration and place all files into the specified 'Output Directory'. You must Generate before you can click the 'Setup ZTV Displays' button.

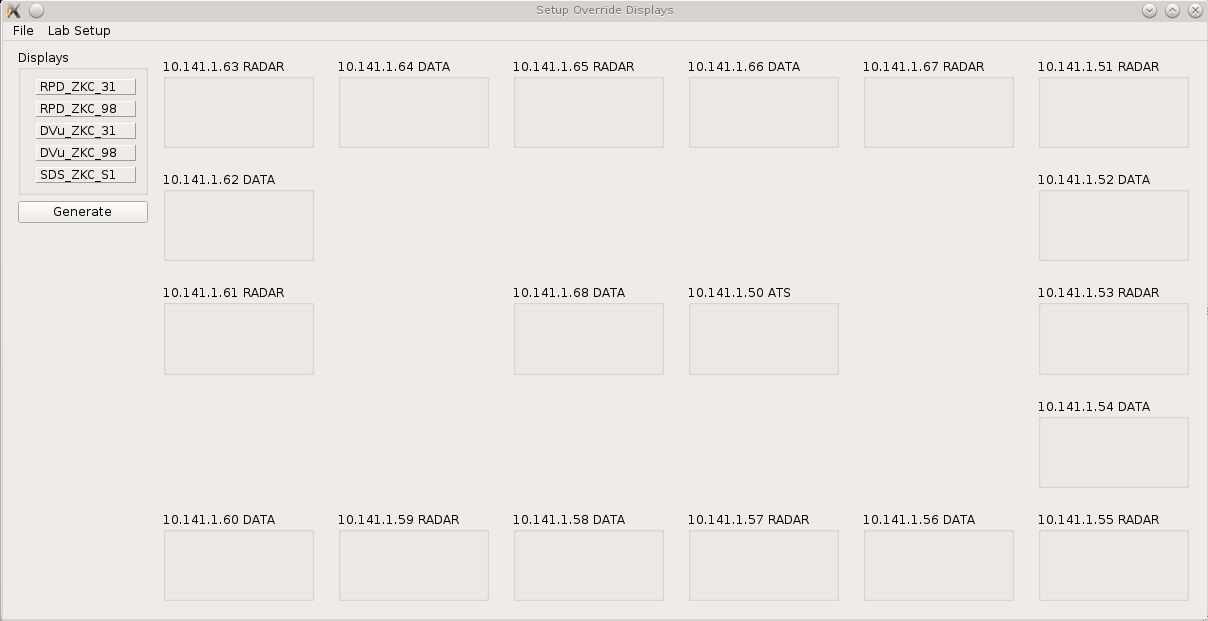

Setup ZTV Displays

Image Image Image

Displays: The specified R Pos and D Pos sectors will be displayed in this list. Drag and Drop a position to the desired display
